Electroplating

Reliable sensors engineered for harsh electroplating baths—stabilize your chemical dosing and ensure discharge compliance.

Get Instant Quote
Home Industries Electroplating

Industry Overview

The global electroplating market is rapidly evolving, driven by surging demand for advanced surface finishing in the automotive and electronics sectors while prioritizing sustainable wastewater management. Leading facilities are increasingly adopting real-time monitoring technology to ensure strict regulatory compliance and optimize chemical dosing efficiency for long-term operational excellence.

Common Water Quality Challenges in Electroplating

  • Sensor corrosion in harsh chemical baths.
  • Signal interference from heavy metal ions.
  • Strict environmental compliance for effluent.
  • Frequent maintenance in high-scaling processes.
  • Manual testing leads to inconsistent results and delayed responses.Manual sampling delays and high labor cost

Process Flow & Monitoring Points

Industrial wastewater treatment typically involves equalization, pH adjustment, coagulation, biological processing, clarification, and final discharge. Each stage requires continuous online monitoring to control dosing, stabilize process performance, and ensure regulatory compliance.

Category Details Benefits of Online Monitoring
Key Water Quality Parameters pH Level: Crucial for plating bath stability and neutralization Ensures optimal chemical reactions and automates precise acid/alkali dosing for effluent compliance.
ORP (Redox): Monitors cyanide destruction and chrome reduction Guarantees complete toxic metal treatment and prevents hazardous chemical carryover.
Conductivity (EC): Measures total dissolved solids and rinse water purity Optimizes rinse water usage (water recycling) and monitors plating bath concentration.
Temperature: Controls reaction kinetics and plating quality Maintains consistent deposit thickness and prevents overheating of corrosive chemical tanks.
Dissolved Oxygen (DO): Vital for air-agitation and aeration processes Monitors aeration efficiency in biological wastewater treatment and prevents anaerobic odors.
Turbidity: Indicates suspended solids in treated effluent Provides real-time verification of filtration performance and final discharge clarity.
How Online Sensors Improve Operations Automated Chemical Dosing: Real-time feedback loops for precision pumps Eliminates manual titration errors, reduces chemical waste, and ensures batch-to-batch consistency.
Heavy Metal Precipitation Control: Monitors pH-driven metal removal Optimizes the removal of nickel, copper, and chrome to meet strict regulatory discharge limits.
Early Leakage Detection: Instant alerts for tank or pipe failures Prevents catastrophic environmental incidents and protects expensive plant infrastructure.
Digital Data Logging: Automated records for environmental audits Simplifies regulatory reporting and supports predictive maintenance of plating line equipment.
Typical Application Scenarios Plating Tank Monitoring: Direct control of chemical baths Extends bath life and maintains high-quality surface finishes for automotive/electronics.
Rinse Water Management: Multi-stage rinse tank optimization Significantly reduces freshwater consumption and lowers sewage treatment costs.
Effluent Treatment Plant (ETP): Final neutralization and metal removal Ensures 24/7 compliance with local environmental discharge permits and prevents fines.

Recommended Featured Products

Technical Capabilities for Electroplating

Supported pH Range 0-14
Accuracy ±0.02 pH/±1 nV ORP
Temperature Range 0-80°C
Output Options 4-20mA / RS485 Hodbus / Relay
Installation Methods Subnersible / Flow Cell / Pipeline
Turbidity Range 0-4000 NTU
Dissolved Oxygen 0-20mg/L(optical)

Measured Parameters

Not Sure Which Product Meets Your Needs?

Please contact us immediately to speak with our experts and receive a discounted quote.

Get Instant Quote

Why Choose Us for Wastewater Monitoring?

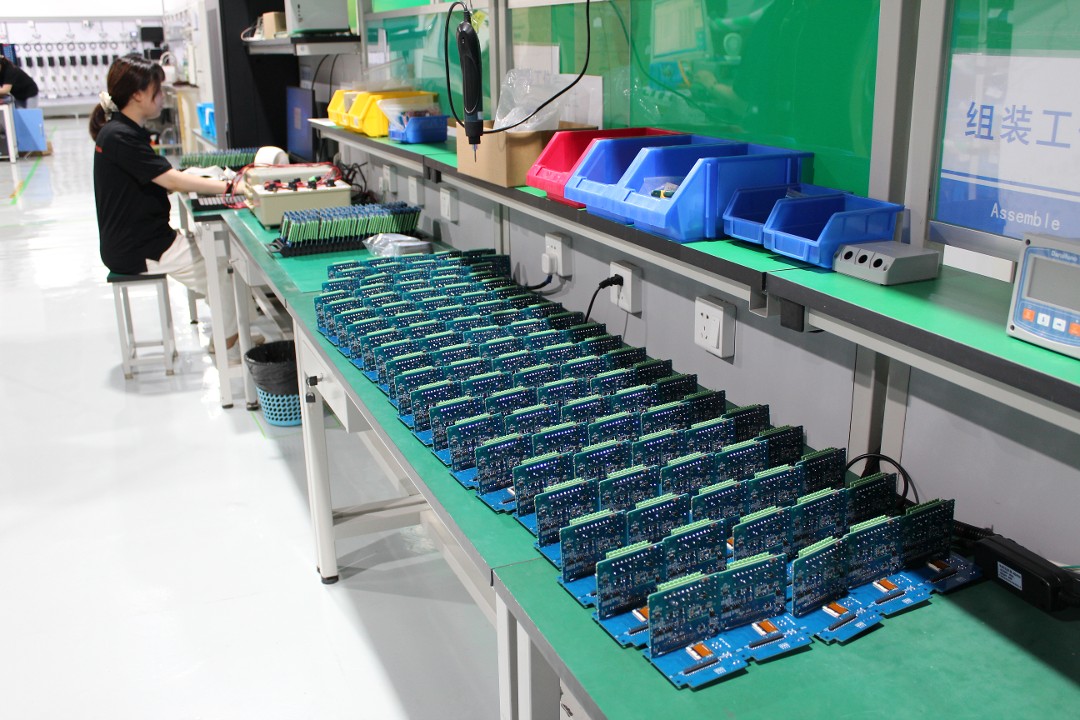

  • With over a decade of manufacturing experience, we possess mature capabilities in production, R&D, and supporting services.
  • Anti-fouling design for sludge and high-solids environments
  • Real-time stable measurement in harsh wastewater
  • Long-term stability with minimal calibration
  • Experience across 1,000+ wastewater sites

Proven Performance in Challenging Environments: Expertly Solving Complex Water Quality Monitoring Hurdles.

  • Anti-Poisoning pH Control for High-Precision Acidic Plating

    Customer Issue:

    High-precision PCB plating lines in South Korea faced frequent electrode poisoning due to copper-rich acidic baths in May 2021. Inaccurate pH readings led to uneven metal deposition, causing a 12% increase in substrate rejection rates.

    Solution Applied：

    DPH-890 High-Temperature pH Sensor with a solid polymer electrolyte and MCC-500 Multi-channel Controller eliminates electrode poisoning to maintain ±0.05 pH dosing precision.

    Result：

    • Reduced chemical additive waste by 18% through high-precision pH dosing based on stable real-time data.
    • Achieved a 95% reduction in substrate rejection rates by ensuring consistent metal deposition quality.
    • Extended plating bath lifespan by 3 months using anti-poisoning sensors to monitor acidic copper concentrations.

  • High-Frequency ORP Tracking for Guaranteed Cyanide Destruction

    Customer Issue:

    Automated automotive chrome plating line in Germany struggled with incomplete cyanide destruction in wastewater treatment in November 2023. Fluctuating ORP levels failed to trigger timely chemical dosing, risking non-compliance with strict European heavy metal discharge limits.

    Solution Applied：

    DRH-790 Platinum-ring Redox Sensor paired with MCC-500 Smart Digital Controller features high-frequency sampling to trigger immediate chemical dosing for 100% cyanide destruction.

    Result：

    • Guaranteed 100% regulatory compliance with European heavy metal discharge limits through automated ORP tracking.
    • Lowered wastewater treatment costs by 22% by optimizing cyanide destruction with precise reagent control.
    • Decreased manual sensor maintenance hours by 60% due to the rugged, corrosion-resistant electrode design.

  • Automated ORP Monitoring for Electroplating Effluent Treatment

    Customer Issue:

    An electroplating facility specialized in heavy metal surface finishing. Incomplete chemical reactions (cyanide destruction) caused by inaccurate ORP readings and harsh process temperatures.

    Solution Applied：

    Installation of APX2-C3 controllers supporting 2-point ORP calibration and withstanding process temperatures up to 55°C.

    Result：

    • Ensured 100% heavy metal precipitation with precise redox potential tracking.
    • The IP66-rated enclosure protected electronics from corrosive chemical vapors in the plant.
    • Calibration logs (last 100 entries) streamlined predictive maintenance for ORP electrodes.

Frequently Asked Questions

Optimize your plating process today—inquire now for detailed product specifications and a competitive wholesale quote.

Get Instant Quote
1. How to extend pH sensor lifespan in corrosive plating baths?
Use sensors with solid polymer electrolytes and PTFE junctions to prevent electrode poisoning and acid corrosion.
2. Why is ORP accuracy critical for cyanide destruction in wastewater?
Precise ORP monitoring ensures complete chemical reaction, preventing toxic cyanide carryover and ensuring environmental compliance.
3. Can heavy metal ions interfere with pH and conductivity readings?
Yes, but high-impedance sensors and inductive conductivity designs can effectively eliminate signal interference from metallic ions.
4. What are the benefits of automated dosing over manual titration?
Automation provides real-time adjustments, reducing chemical waste by up to 20% and ensuring consistent plating quality.
5. How to monitor rinse water quality for effective water recycling?
Install online conductivity (EC) sensors to control multi-stage rinse tanks, significantly reducing freshwater consumption and sewage costs.
6. What is the best way to prevent electrode scaling in alkaline plating?
Select sensors with self-cleaning capabilities or flat-surface glass designs to minimize mineral buildup and maintenance frequency.
7. How does temperature compensation affect plating bath stability?
Automatic temperature compensation (ATC) ensures accurate pH readings across varying bath temperatures, preventing deposition defects.
8. How to ensure 24/7 compliance with heavy metal discharge limits?
Implement integrated online monitoring systems with data logging and instant alerts for proactive wastewater management.
