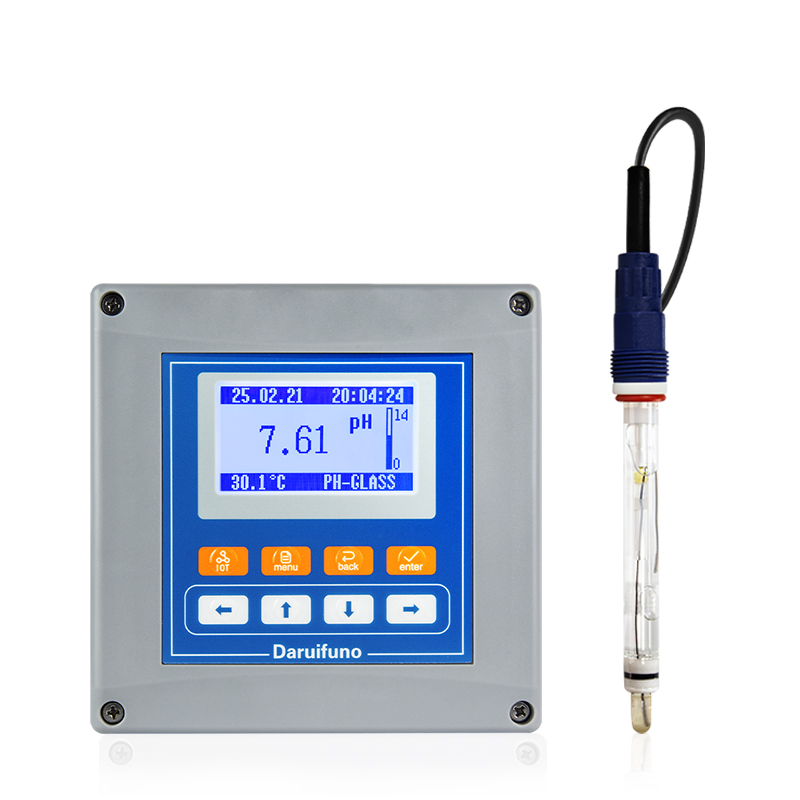

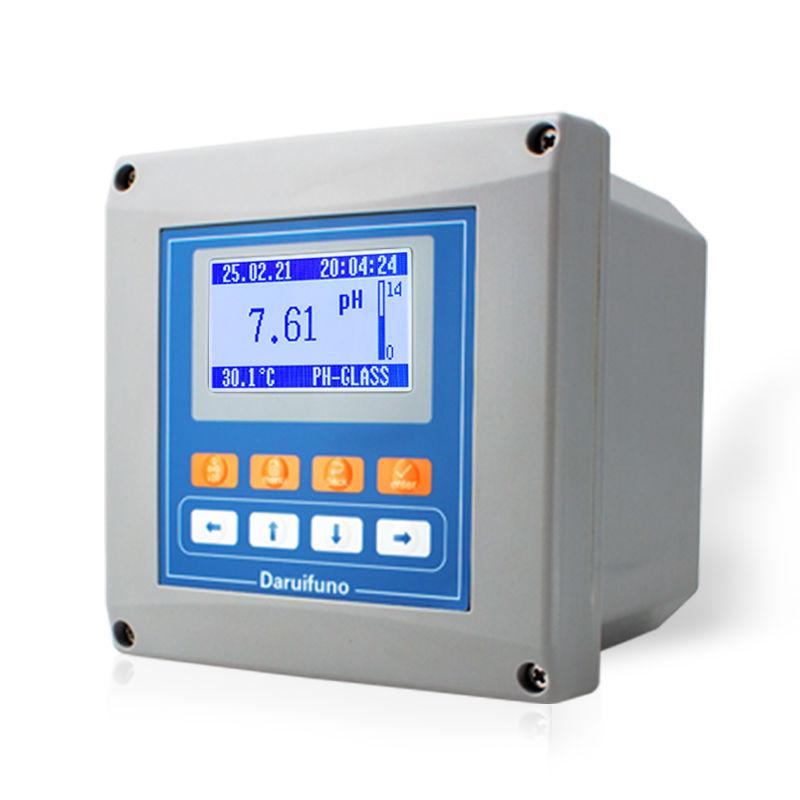

pH、ORP Controller/Transmitter APX2-C3

Supporting simultaneous pH and ORP monitoring, this dual-channel controller enables precise automated dosing and reliable process control in industrial water treatment.

  • Measuring Parameter： pH 、ORP
  • Delivery time： 2-5 weeks
  • MOQ： 1
  • Price： Contact Us
Option
  • AC:100～240V
  • DC：18～36V
Get A Quote
  • Fast And Safe Logistics
  • 30-Day Return & Fast Free Shipping
  • Overview
  • Specification
  • Downloads
  • Accessories
  • Related Productions
Show All Products: Show All Online Sensor & Controller

Standard

Measuring principle Potentiometric
Application Long-term monitoring and limit control in processes with stable process conditions
Water and wastewater treatment
Characteristic Digital pH electrode for standard applications in process and environmental technology with dirt-repellent PTFE ring junction and built-in temperature sensor
Measuring principle Gel compact electrode with PTFE ring junction
Design All shaft lengths with temperature sensor Advanced gel technology
Material Sensor shaft: Glass to suit process
pH membrane glass: Type A, B, F
Metal lead: Ag/AgCl
Aperture: Ring-shaped PTFE junction
O-ring: FKM
Process coupling: PPS fibre-glass reinforced
Nameplate: ceramic metal oxide
Dimension Diameter: 12 mm (0.47 inch)
Shaft length: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.17 and 16.73 inch)
Temperature sensor NTC 30K
Ex certification IP68
Ingress protection IP68
Input 1 to 4x Memosens digital input
Output communication 2 to 8x 0/4 to 20 mA current outputs, alarmrelay
