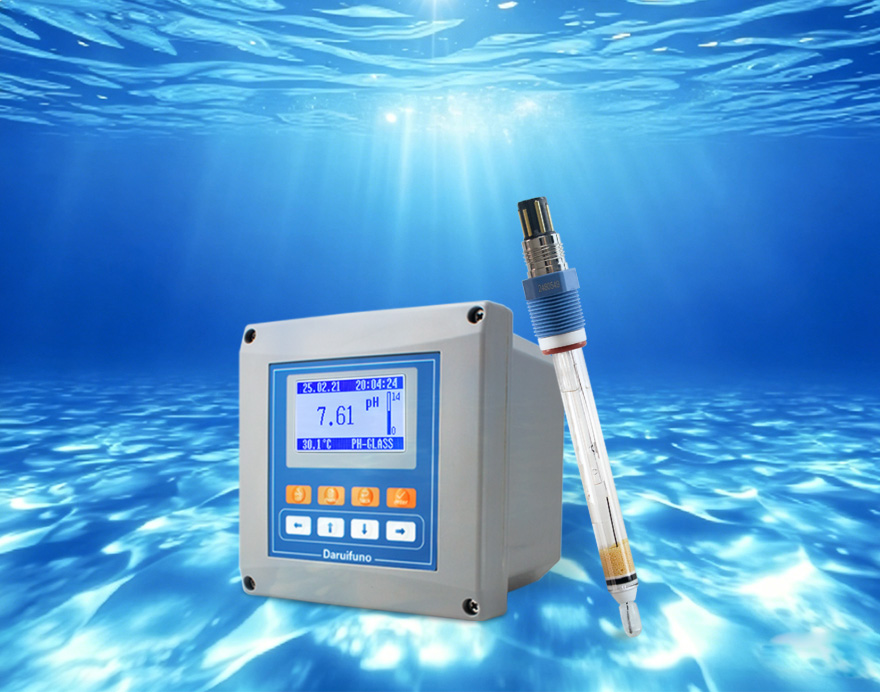

Integrating a porous Teflon diaphragm with an Ag/AgCl double-salt bridge reference system, this professional glass probe operates reliably at a 0 to 6 Bar working pressure to capture precise data across a 0 to 14 pH range.
Fast And Safe Logistics
Reliable Quality, Guaranteed Performance.
| Sensor Model | ASP125E |
| Digital or Analog | Analog |
| Measuring Principle | Potentiometric |
| Measuring Parameter | pH |
| Measuring Range | pH 0～14 |
| Indicator Electrode | Cylindrical glass membrane |
| Reference System | Ag/AgCl reference electrode, Double salt bridge |
| Reference Electrolyte | KCl Gel |
| Diaphragm | Porous PTFE |
| Refillable Electrolyte | No |
| Sensor Material | Glass |
| Operating Temperature | 0～80 ℃ |
| Operating Pressure | 0～6 bar |
| Temperature Sensor | No temperature sensor or PT1000 (Customized) |
| Recommended Solution Flow | 0.5 m/s ≥ flow rate ≥ 0.001 m/s |
| E0 | ±0.25pH(25℃) |
| Slope | >95% (25℃) |
| Sensor Dimension | Diameter: 12mm, Shaft length: 120mm |
| Process Connection | PG13.5 |
| Cable Connector | S8/FVP |
| Cable Length | 5m as standard, Customizable up to 60m |
| Model Family | ASP120E |
