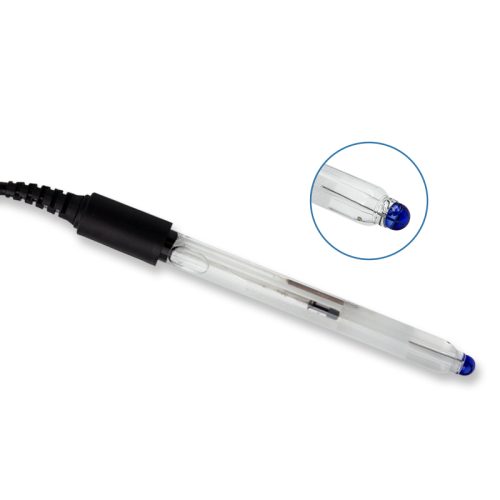

Optimized for the stable monitoring of recycled water and rainwater environments, this high-strength glass probe relies on a hemispherical membrane and a porous ceramic sand core to cover a full 0 to 14 pH range.
Fast And Safe Logistics
Reliable Quality, Guaranteed Performance.
| Sensor Model | ASP101E-Y |
| Digital or Analog | Analog |
| Measuring Principle | Potentiometric |
| Measuring Parameter | pH |
| Measuring Range | pH 0～14 |
| Indicator Electrode | Hemispherical glass membrane |
| Reference System | Ag/AgCl, Double-junction |
| Reference Electrolyte | KCl Gel |
| Diaphragm | Porous ceramic sand core |
| Refillable Electrolyte | No |
| Sensor Material | Glass |
| Operating Temperature | 0～80°C |
| Operating Pressure | 0～6 bar |
| Temperature Sensor | No temperature sensor or PT1000 (customized) |
| Recommended Solution Flow | 0.5 m/s ≥ flow rate ≥ 0.001 m/s |
| E0 | ±0.25pH(25℃) |
| Slope | >95% (25℃) |
| Sensor Dimension | Diameter: 12mm, Shaft length: 120mm |
| Process Connection | No thread |
| Cable Connector | Integrated type |

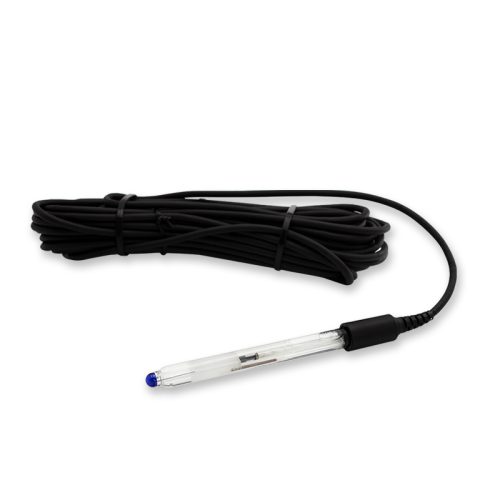

| Cable Length | 5m as standard, Customizable up to 60m |
| Model Family | ASP101E |
