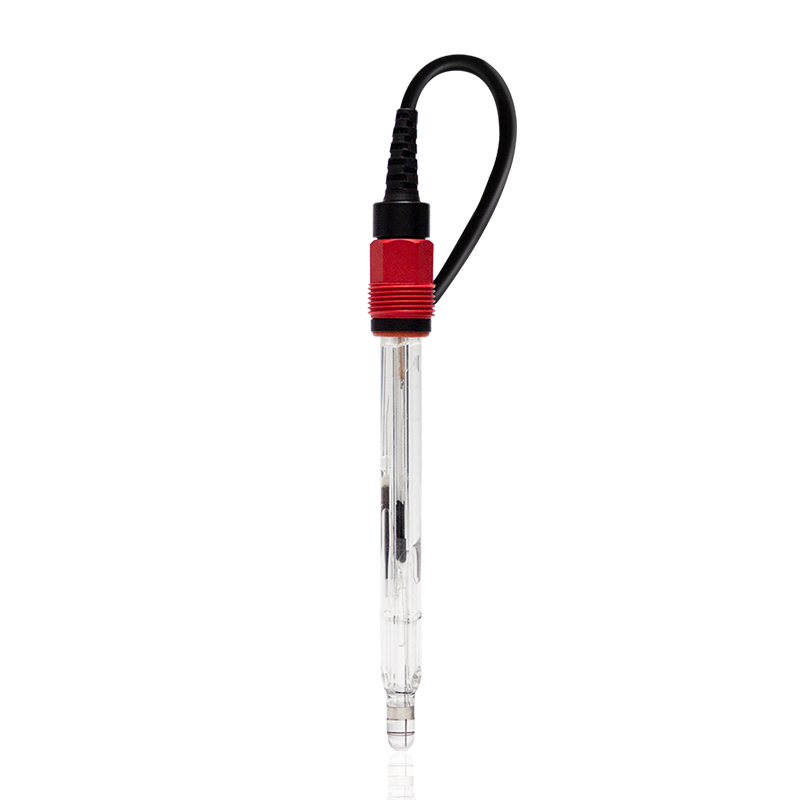

Featuring dual-detection capabilities to measure both a 0 to 14 pH range and ±2000 ORP threshold simultaneously, this versatile glass probe integrates a hemispherical membrane and platinum electrode for pure water environments under a 0 to 6Bar working pressure.
Fast And Safe Logistics
Reliable Quality, Guaranteed Performance.
| Sensor Model | ASPR102E |
| Digital or Analog | Analog |
| Measuring Principle | Potentiometric |
| Measuring Parameter | pH & ORP |
| Measuring Range | 0~14pH & ±2000mV |

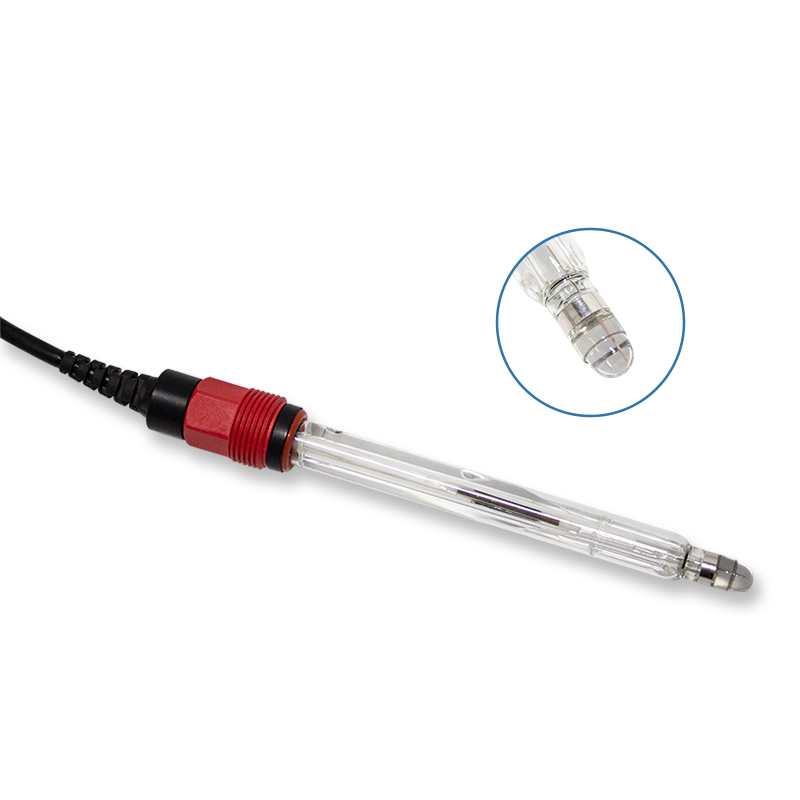

| Indicator Electrode | Hemispherical membrane & Platinum |
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel |
| Electrode Material | Glass+porous ceramic sand core |
| Temp & Pressure | 0~80℃@6Bar |
| Recommended Solution Flow | 0.5 m/s ≥ flow rate ≥ 0.001 m/s |
| Zero Position(E0) | ±0.25pH, ±20mV(25℃) |
| Slope | >95% (25℃) |
| Temperature Unit | @customized PT1000, PT100, NTC10K, etc. |
| Sensor Dimension | Diameter: 12mm, Shaft length: 120mm(@customized) |
| Mounting Thread | Anti-twist cap without thread or PG13.5 (@optional) |
| Lead Type |
Integrated or split FS8, FVP, etc. (@optional) |

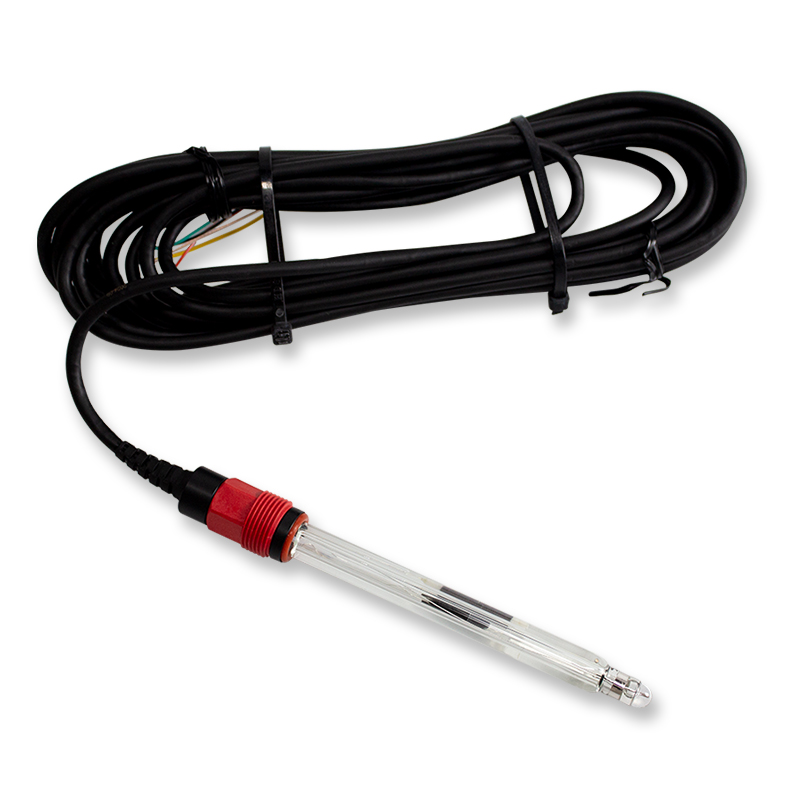

| Cable Length | 5m as standard, Customizable up to 60m |
| Model Family | ASPR102E |
