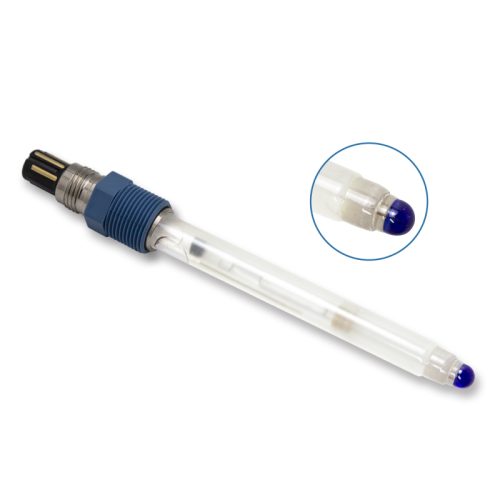

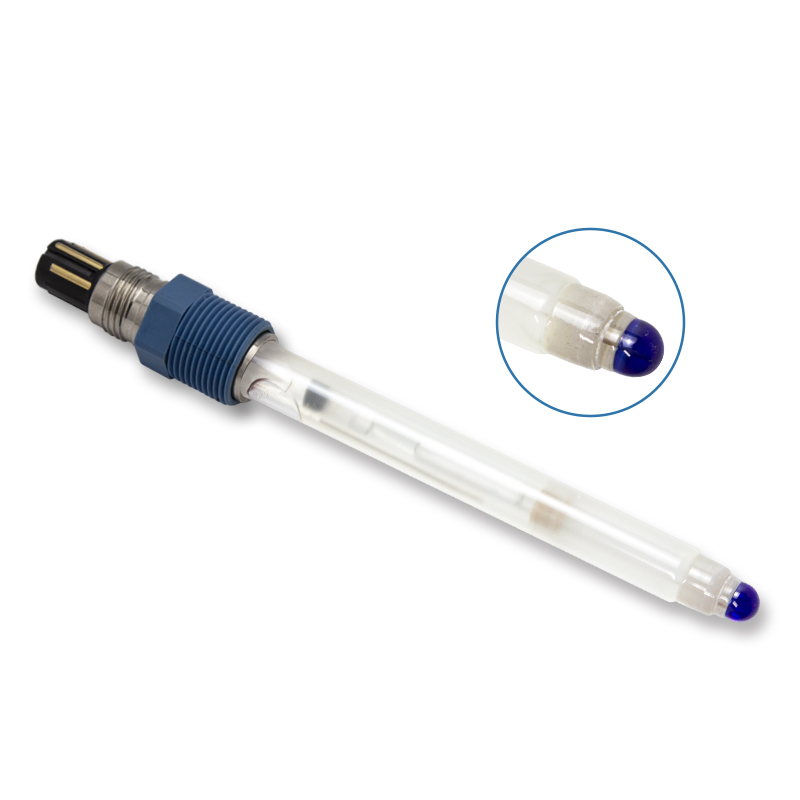

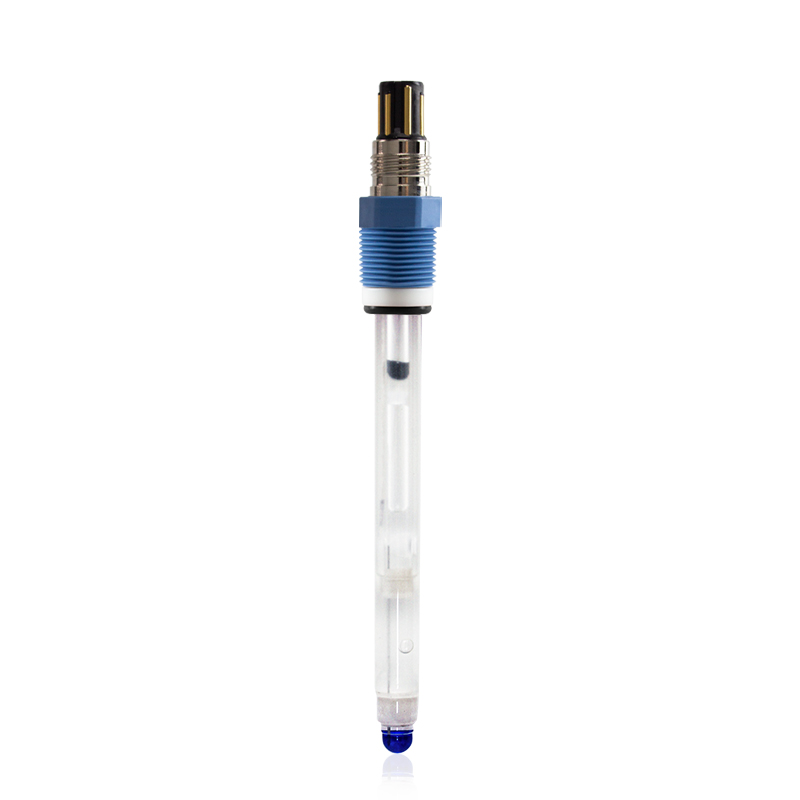

Online Glass pH Electrode with VP Connector

Featuring a non-clogging annular ceramic junction, this electrode is ideal for stable pH monitoring in domestic sewage and industrial wastewater.

Model： ASP100E-FVP
Measuring Range： 0~14 pH
MOQ： 1
Price： Contact

Get A Quote

Fast And Safe Logistics
Reliable Quality, Guaranteed Performance.

Overview
Specification
Downloads
Accessories
Related Products

Show All Products: Show All pH / ORP Sensor & Controller

Overview

Information

Measuring Range: 0~14pH
Indicator Electrode: Hemispherical membrane
Reference System: Ag/AgCl, double junction

Work Process

Working Temperature: 0~80℃
Working Pressure: 0~6Bar

Features

Clever Simplicity

An intuitive design featuring automatic recognition and true plug-and-play convenience for effortless operation.
Highest Flexibility

A versatile, modular configuration that allows easy scaling and seamless adaptation to diverse monitoring needs.
Long-Lasting Reliability

Robust, durable construction engineered to deliver reliable and stable performance across diverse and harsh environments.

Application

Engineered to deliver highly precise and rapid-response monitoring, our solutions feature an intuitive design for effortless operation and quick setup. It is widely applicable across diverse settings, from municipal wastewater treatment and industrial effluents to surface water, swimming pools, and commercial aquaculture in ponds or lakes, ensuring reliable data wherever you need it.

Applicable Scenarios

Water & Wastewater
Aquaculture
Energy & Power Generation
Food & Beverage
Agriculture & Hydroponics
Plating

Standard

Sensor Model	ASP100E-FVP
Digital or Analog	Analog
Measuring Range	0～14pH
Indicator Electrode	Hemispherical glass membrane
Reference System	Ag/AgCl, Double-junction
Reference Electrolyte	KCl Gel
Diaphragm	Annular ceramic diaphragm
Refillable Electrolyte	No
Sensor Material	Glass
Operating Temperature	0～80°C
Operating Pressure	0～6 bar
Temperature Sensor	PT1000
Recommended Solution Flow	0.5 m/s ≥ flow rate ≥ 0.001 m/s
E0	6.86±0.25 pH in 6.86 buffer (25°C)
Slope	>95% (25℃)
Sensor Dimension	Diameter: 12mm, Shaft length: 120mm
Process Connection	PG13.5

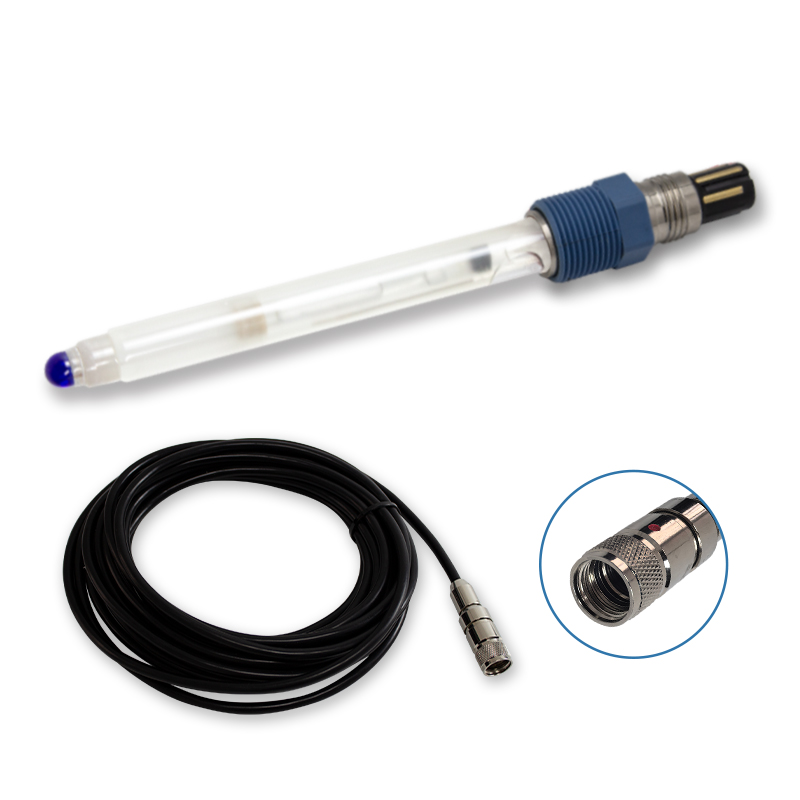

Cable Connector	VP
Cable Length	5m as standard, Customizable up to 60m
Model Family	ASP100E
