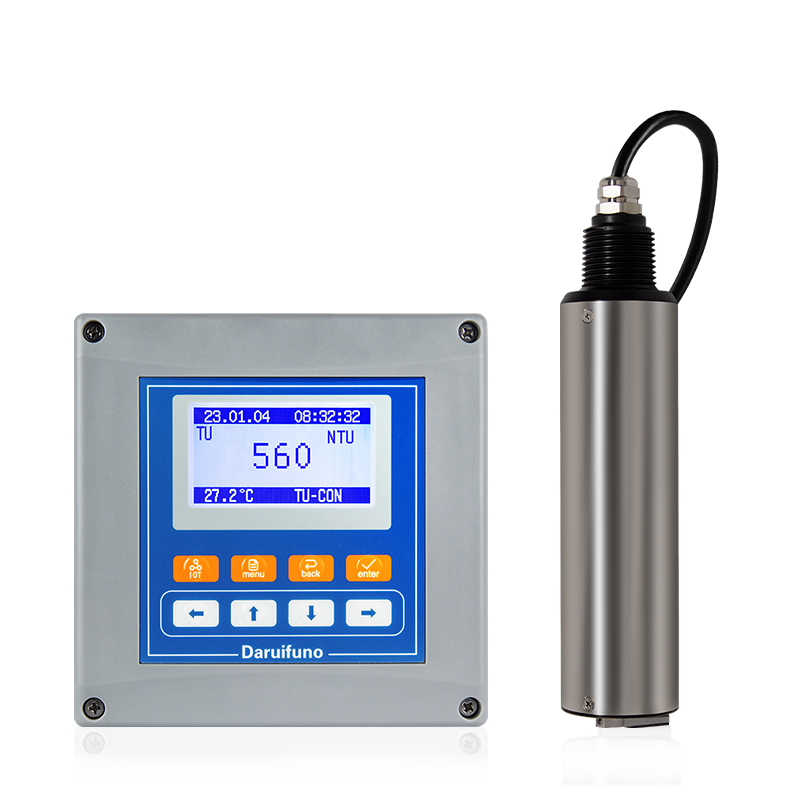

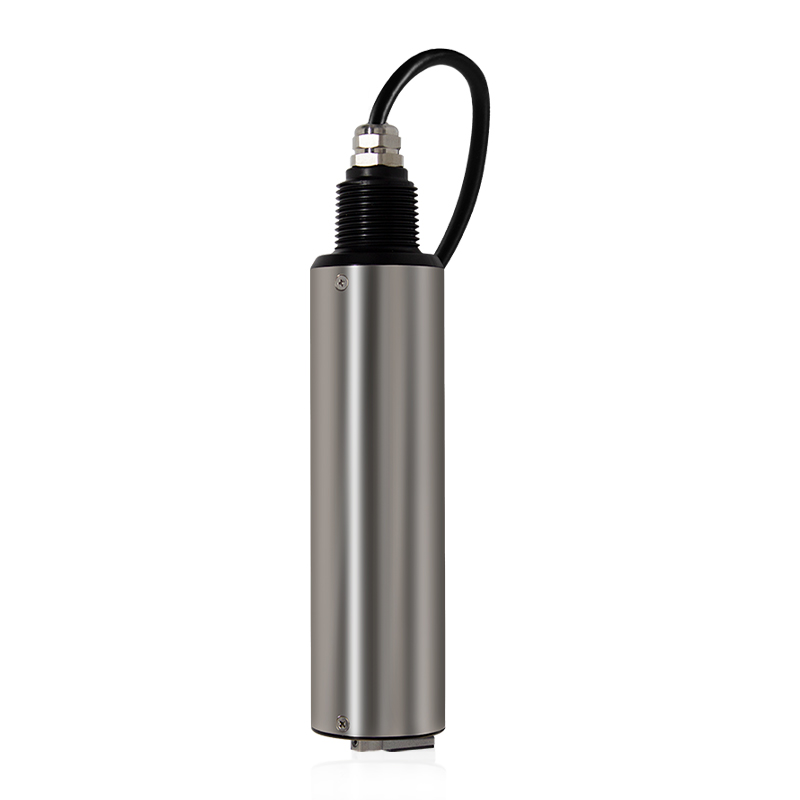

Turbidity Sensor OPTU201

Constructed with a corrosion-resistant SUS316L stainless steel body and an R1 mounting thread, this immersion probe applies an infrared scattering principle to deliver automated water quality data within a wide measurement threshold of 0.01 to 3000 NTU.

  • Measuring Range: 0~3000NTU
  • Delivery time: 2-5 weeks
  • MOQ: 1
  • Price: Contact Us
Option
  • Anti-twist cap
  • PG13.5
Get A Quote
  • Fast And Safe Logistics
  • Reliable Quality, Guaranteed Performance.

Standard

Model OPTU201
Principle Infrared scattering principle
Measuring Range Turbidity: 0.01~3000NTU
Resolution Turbidity: 0.01NTU
Accuracy Better than 5% of the measured value or 0.5NTU, take the larger one
Communication RS485 MODBUS-RTU
Response Time T9060s
Calibration Method Multi-point cal; Factor cal
Work Pressure 4Bar
Sample Flow Rate Not dependent
Operating Temp 0~45°C (no freezing)
Storage Temp 0~60℃(no freezing)
Shell Material SUS316L (Titanium can be customized)
Dimension Diameter: 50mm  x  Length: 235 mm
Mounting Thread R1 thread
Lead Interface Integrated lead

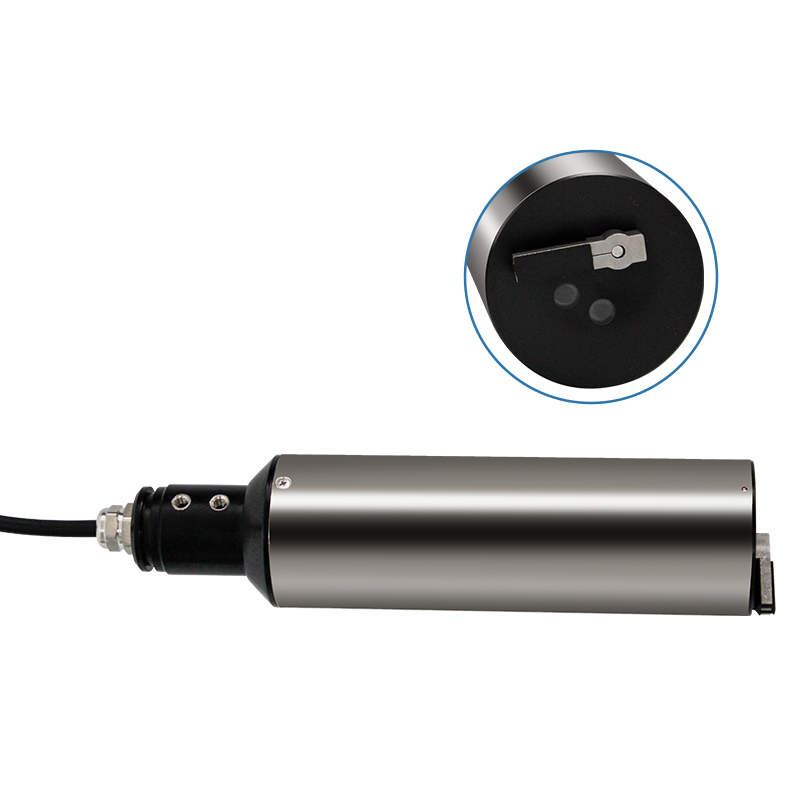

Cleaning Function Equipped with a cleaning wiper
Protection Grade IP68
Power Supply 12V DC
Power Consumption 1.5W

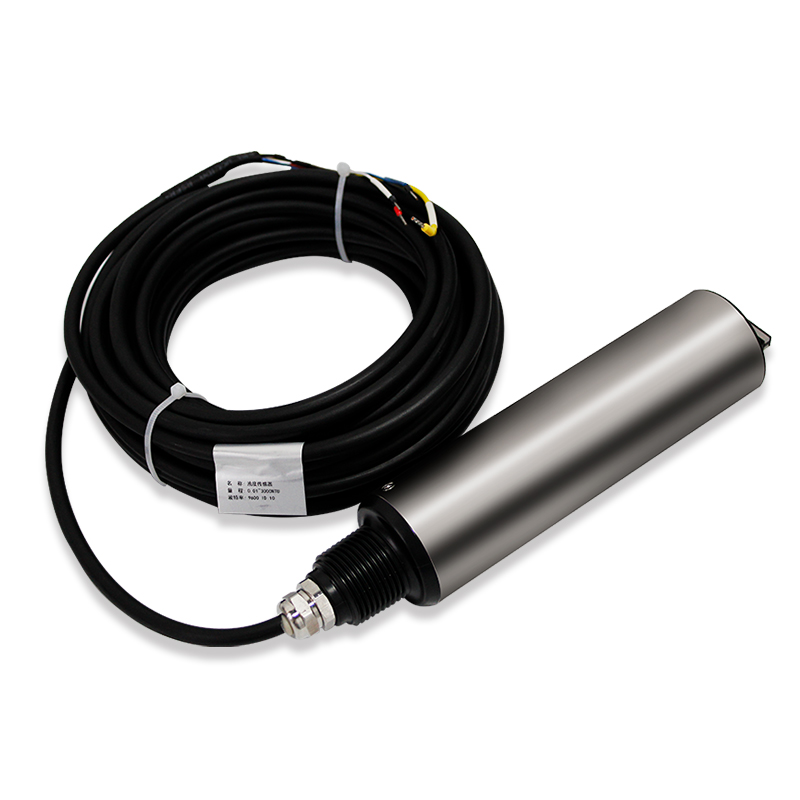

Cable Standard 5 meters (@can be customized)
