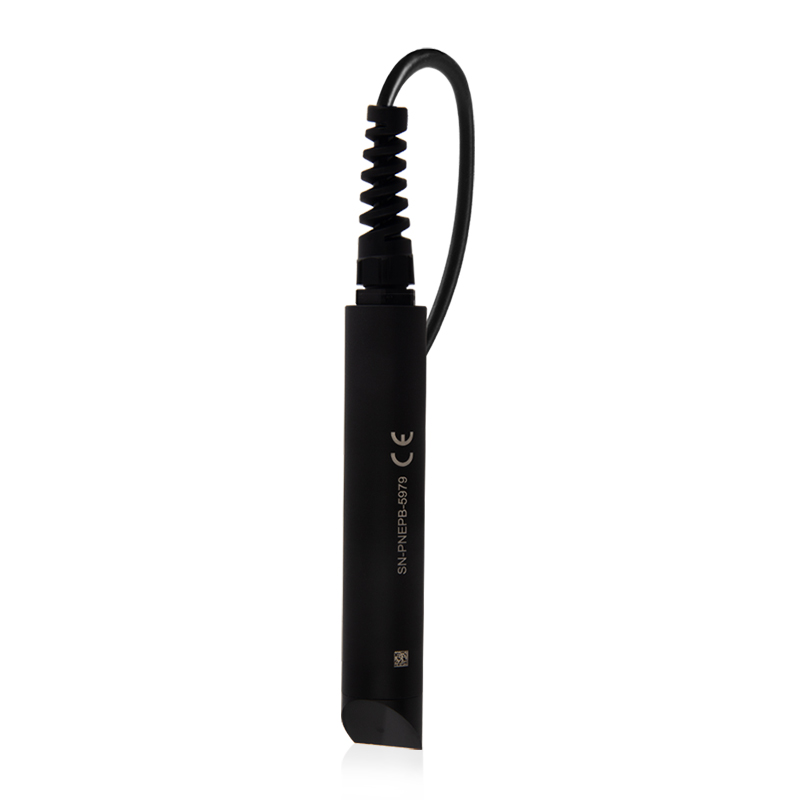

Turbidity Sensor NTU

Constructed with a slim PVC body measuring 27mm in diameter, this instrument covers an operational range of 5 to 4000 NTU for turbidity and 0 to 4500 mg/L for suspended solids via an integrated lead interface.

  • Measuring Range: Turbidity
  • Delivery time: 2-5 weeks
  • MOQ: 1
  • Price: Contact Us
Option
  • Anti-twist cap
  • PG13.5
Get A Quote
  • Fast And Safe Logistics
  • Reliable Quality, Guaranteed Performance.

Standard

Model NTU
Measuring Object Turbidity and TSS (Total Suspended Solids)
Principle Infrared scattering
Measuring Range Turbidity: 5 ~4000NTU   TSS: 0~4500mg/L
Resolution Turbidity: 0.01NTU
Accuracy ±5% RD
Communication RS485 MODBUS-RTU and SDI-12
Cleaning Function An optional external wiper is available.
Response Time T9015s
Calibration Method Offset correction, factor correction
Working Temp 0~50°C
Storage Temp -10~60℃
Working Pressure 0~5Bar
Main Material PVC
Protection Grade IP68
Dimension Φ27mm x L170mm
Lead Interface Integrated lead
Power Supply 12V DC
Power Consumption 1.5W

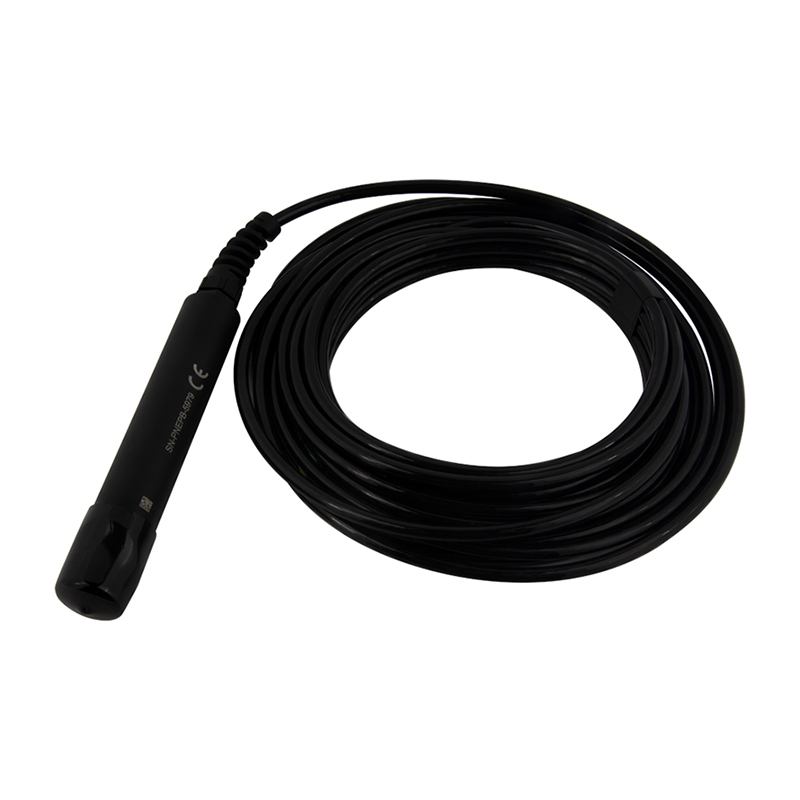

Cable Standard 5meters (@can be customized)
