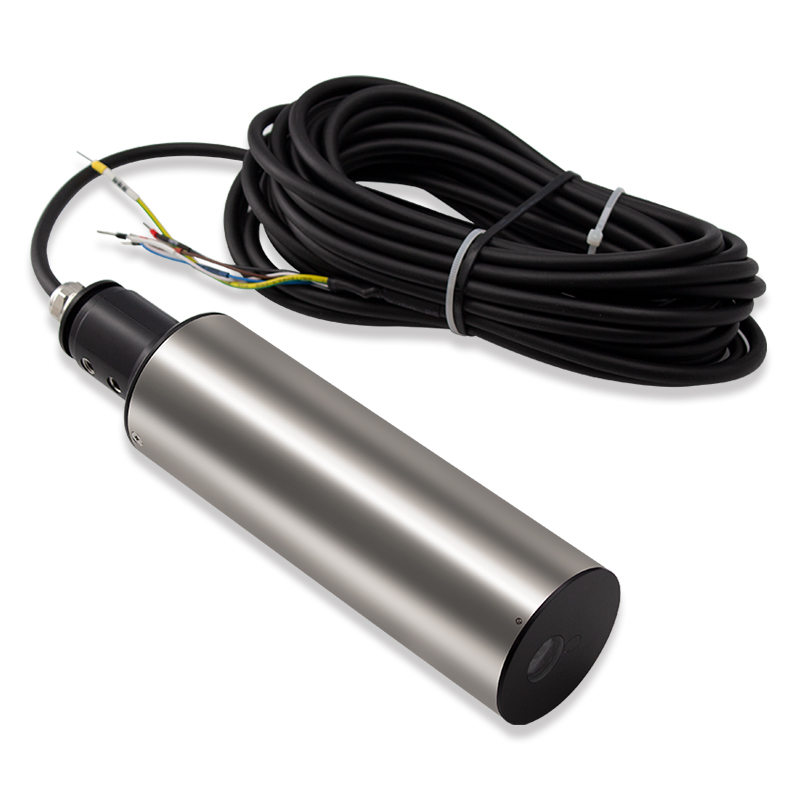

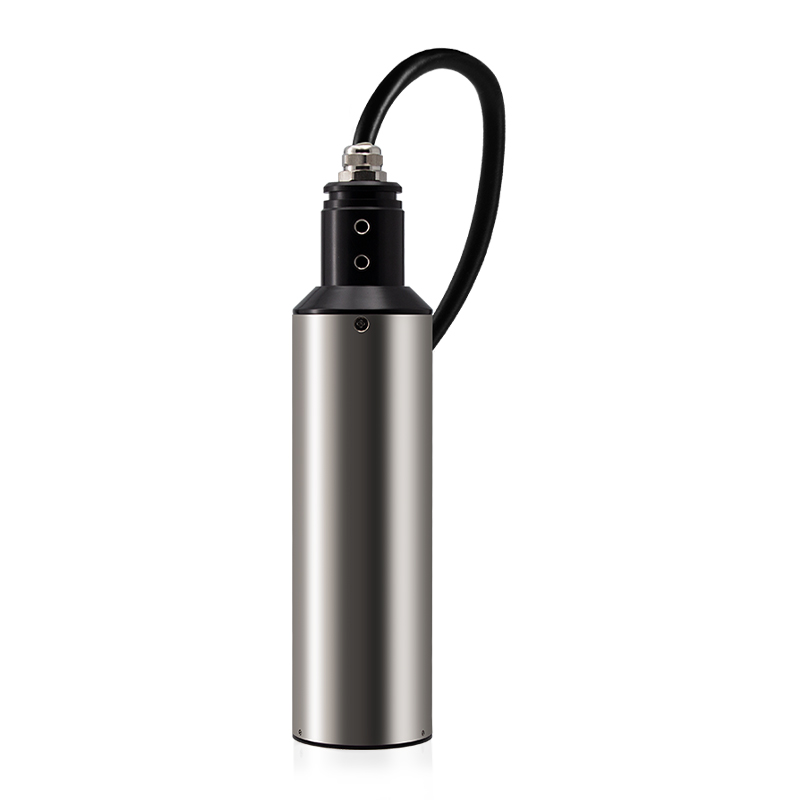

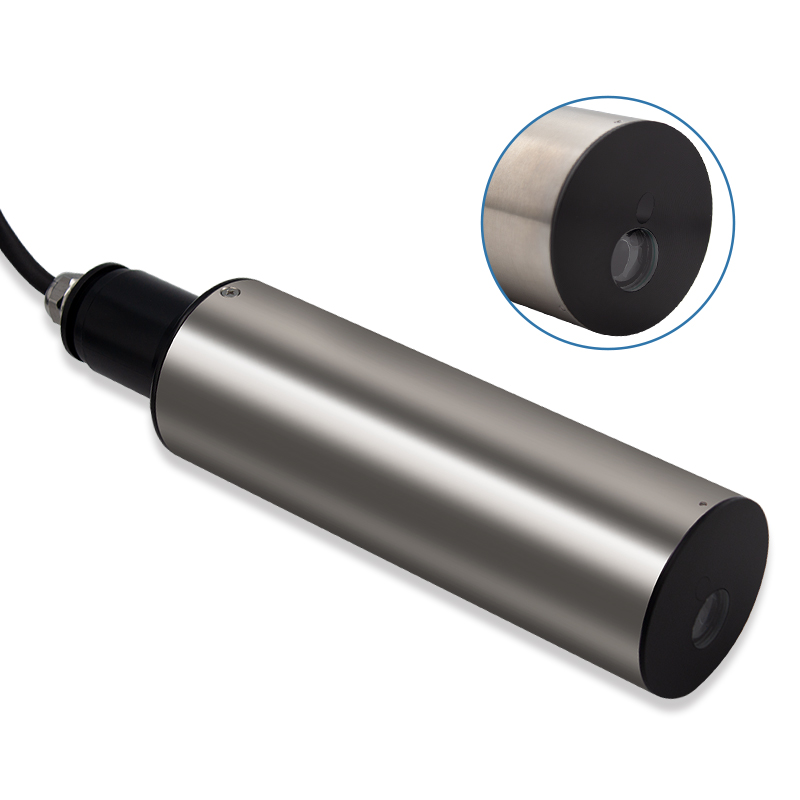

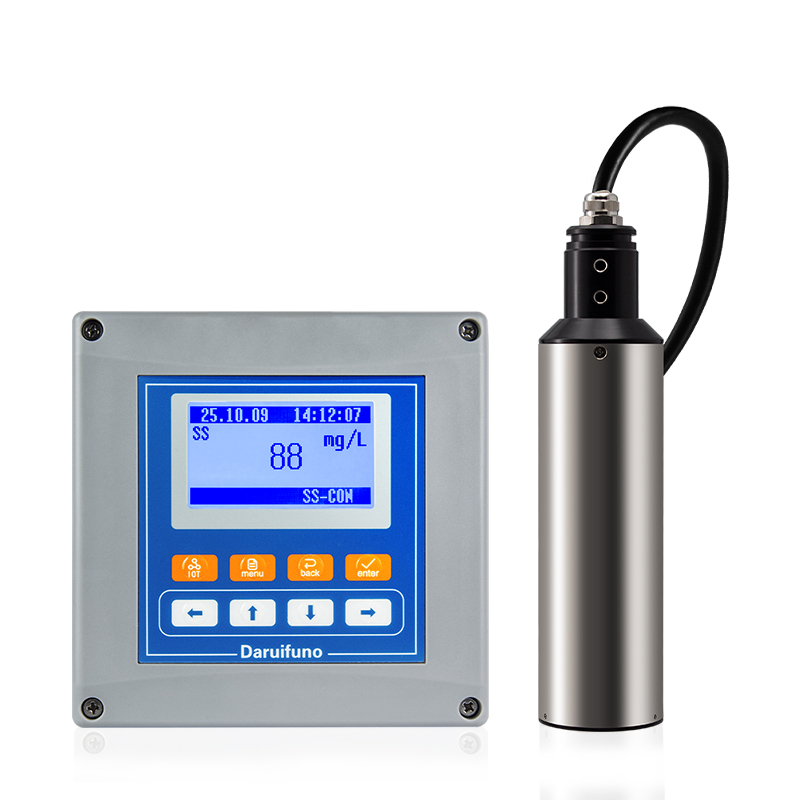

TSS Sensor OPSS300

Constructed with a heavy-duty 316 stainless steel housing, this industrial analytical probe employs an infrared scattering principle to monitor sludge concentration and suspended solids across a dynamic measurement range of 0.01 to 20 g/L.

  • Measuring Range: 0.01~20g/L
  • Delivery time: 2-5 weeks
  • MOQ: 1
  • Price: Contact Us
Option
  • Anti-twist cap
  • PG13.5
Get A Quote
  • Fast And Safe Logistics
  • Reliable Quality, Guaranteed Performance.

Standard

Model OPSS300
Cleaning Function No wiper
Measuring Range 0.01~20g/L
Working Pressure ≤4Bar
Main Material 316 stainless steel (Titanium alloy can be customized)
Dimension Φ60mm x L265mm
Principle Infrared scattering principle
Resolution 0.01g/L
Accuracy Less than 5% of the measured value (Diatomaceous earth standard)
Communication RS485 MODBUS-RTU
Response Time T90< 60s
Calibration Method Multi-point calibration; factor correction
Sample Flow Rate No dependency
Working Temp. 0~50°C (no freezing)
Storage Temp. 0~60℃ (no freezing)
Mounting Horizontal installation (special installation accessories are required)
Lead Interface Integrated lead
Protection Grade IP68
Power Supply 12V DC
Consumption 1.5W
Cable Standard 10 meters
