pH Sensor DPH890

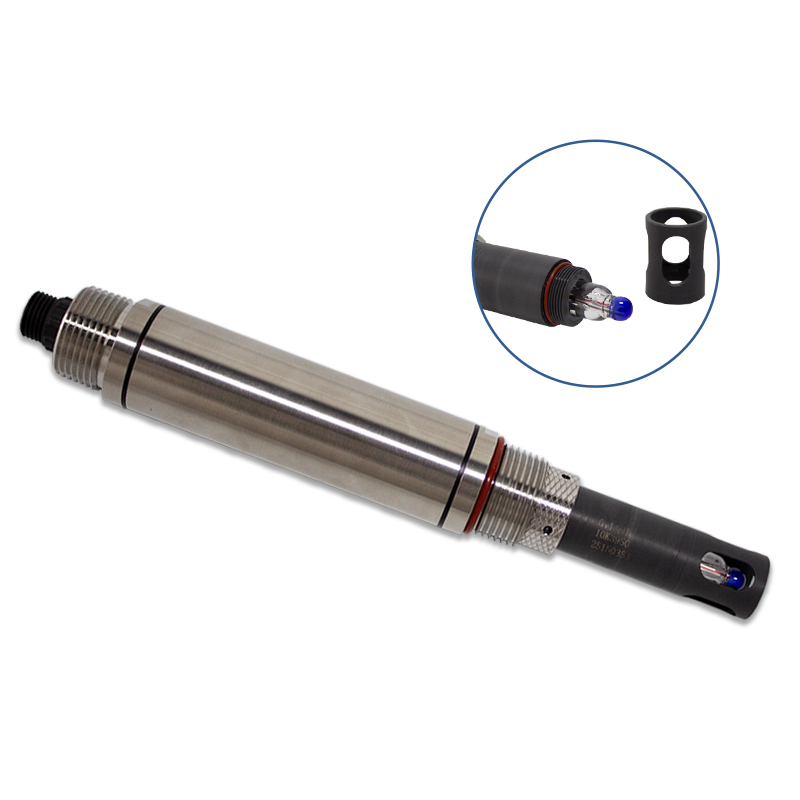

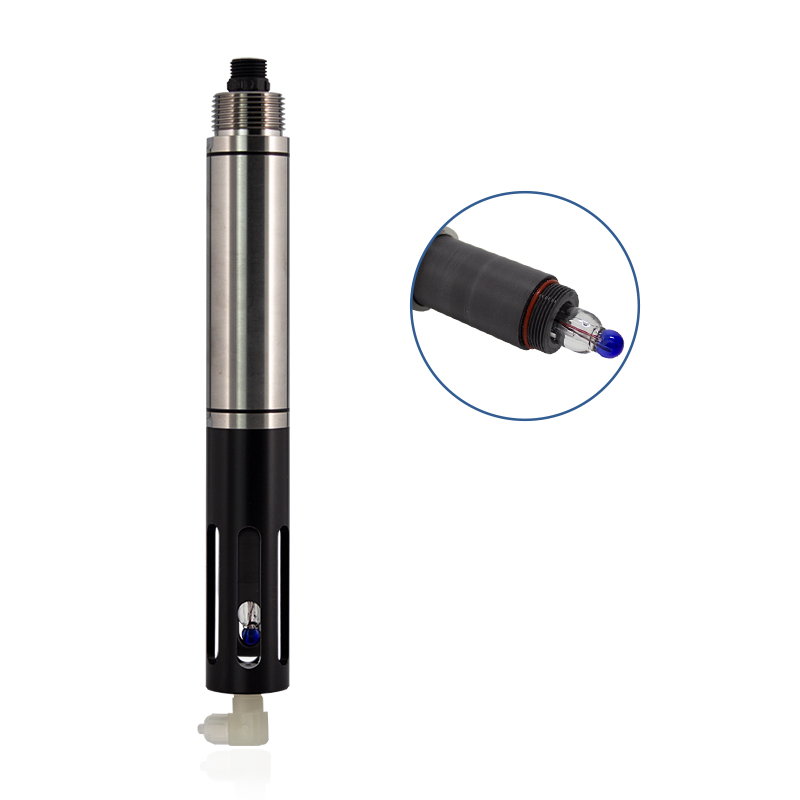

Constructed with a durable SS 316L stainless steel shell and a cost-saving replaceable electrode head, this smart sensor internally stores calibration data to provide reliable monitoring across a 0 to 14 pH scale in temperatures up to 60°C.

  • Measuring Range: 0~14 pH
  • Delivery time: 2-5 weeks
  • MOQ: 1
  • Price: Contact Us
Option
  • Anti-twist cap
  • PG13.5
Get A Quote
  • Fast And Safe Logistics
  • Reliable Quality, Guaranteed Performance.

Standard

Sensor Model DPH890
Digital or Analog Digital
Measuring Principle Electrochemical glass electrode
Measuring Parameter pH
Measuring Range pH: 0~14pH  Temp.: 0~80℃
Resolution 0.01pH / 0.1℃
Accuracy pH: 0.1% of the range or ±0.02pH, take the larger one.Temp: ± 0.2℃
Communication Interface RS485 Modbus-RTU
Compensation Automatic temperature compensation (ATC)
Response Time T9010s
Calibration Method Zero-point calibration, Slope calibration
Operating Temperature 0~60°C
Storage Temperature 0~70℃ (Does not freeze)
Operating Pressure 0~4 bar
Recommended Solution Flow 0.5 m/s ≥ flow rate ≥ 0.001 m/s
Shell Material Stainless steel SUS 316L
Sensor Dimension Diameter: 37mm, Shaft length: 280mm
Mounting Thread 1 inch NPT at both ends; Immersed or piped installation
Lead interface Split M16 connector
Ingress Protection IP68
 Power Supply 9~24V DC
Max. Power Consumption 0.2W
Cable Length 5m as standard (Customizable length available)
Model Family DPH790
