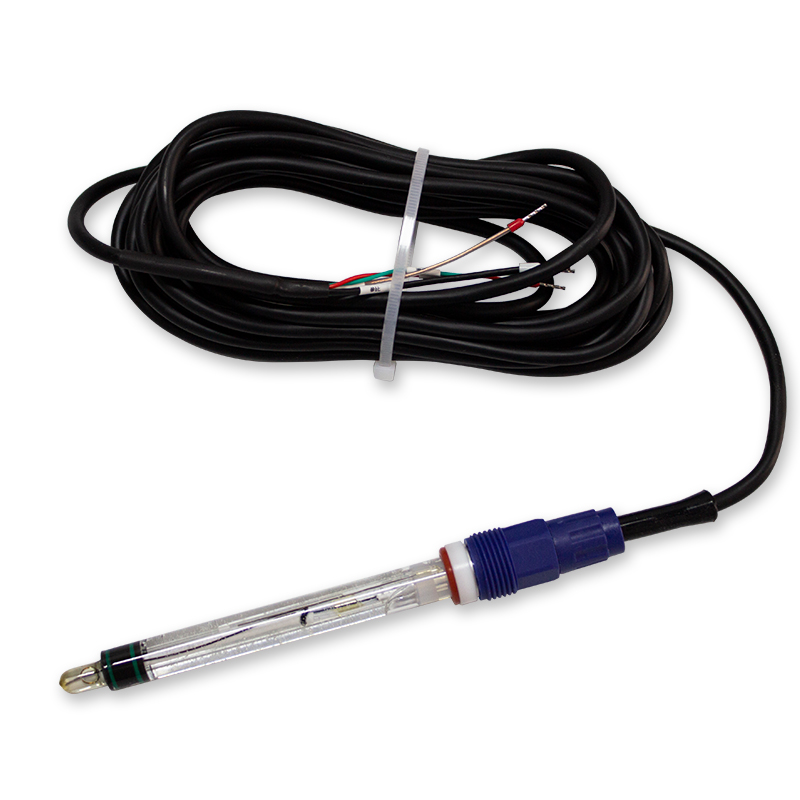

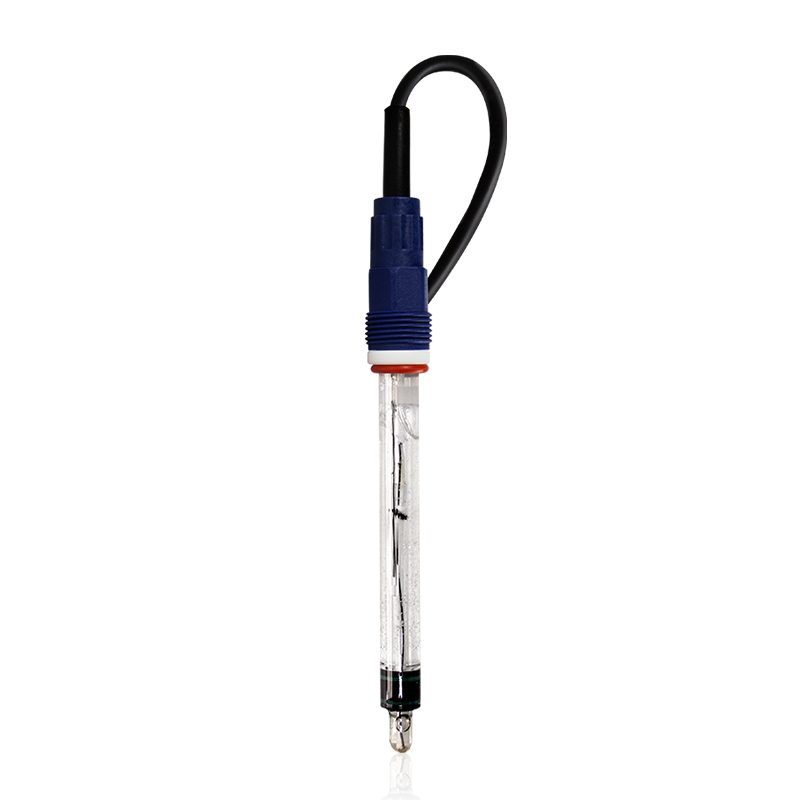

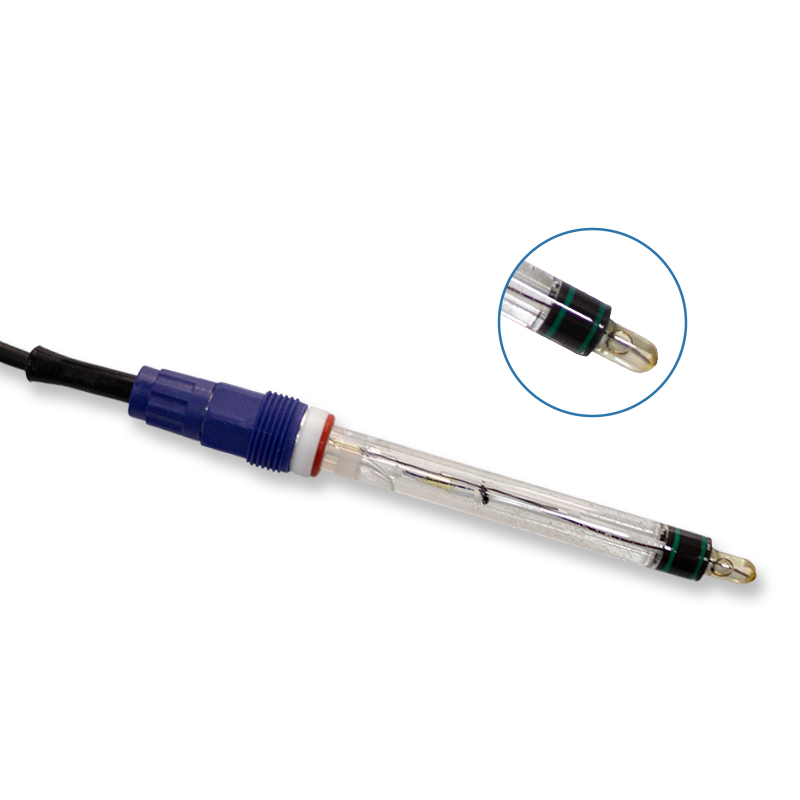

Operating in harsh chemical processes under high temperatures from 0 to 135°C, this specialized glass probe employs a non-porous ion diaphragm to prevent electrode contamination across a full 0 to 14 pH scale.
| Sensor Model | ASP126E |
| Digital or Analog | Analog |
| Measuring Principle | Potentiometric |
| Measuring Parameter | pH |
| Measuring Range | pH 0~14 |
| Indicator Electrode | Cylindrical glass membrane |
| Reference System | Ag/AgCl reference electrode, Double salt bridge |
| Electrolyte | KCl Gel |
| Junction | Non-porous ion-conducting membrane |
| Electrode Material | Glass+Non-porous salt bridge |
| Temp & Pressure | 0~135℃@6Bar |
| Temperature Sensor | PT1000 (Customized) |
| Recommended Solution Flow | 0.5 m/s ≥ flow rate ≥ 0.001 m/s |
| E0 | ±0.25pH(25℃) |
| Slope | >95% (25℃) |
| Sensor Dimension | Diameter: 12mm, Shaft length: 120mm |
| Process Connection | PG13.5 |
| Cable Connector | S8/FVP |
| Cable Length | 5m as standard, Customizable up to 60m |
| Model Family | ASP120E |
