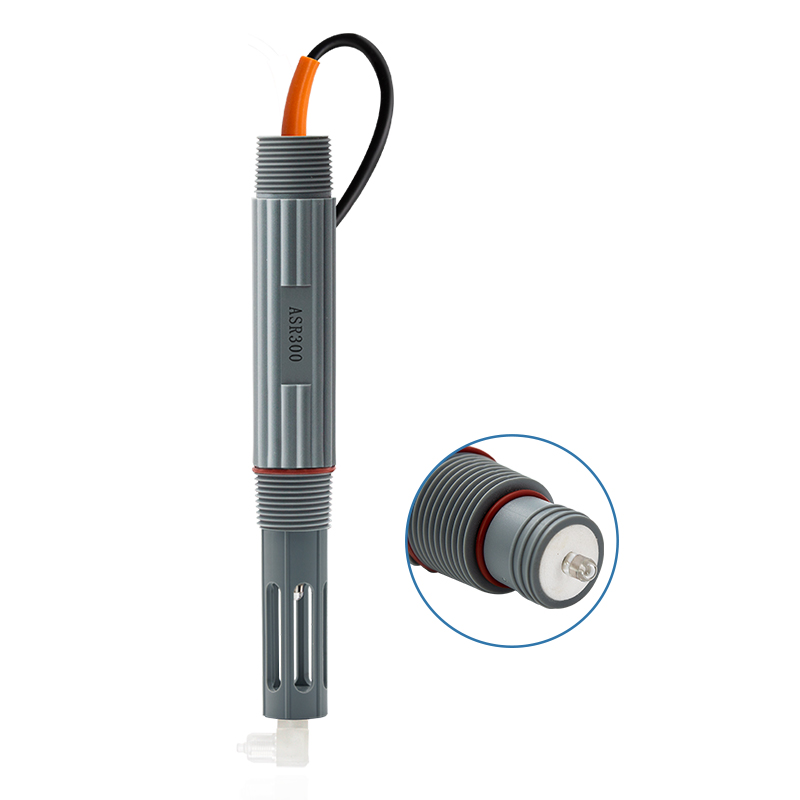

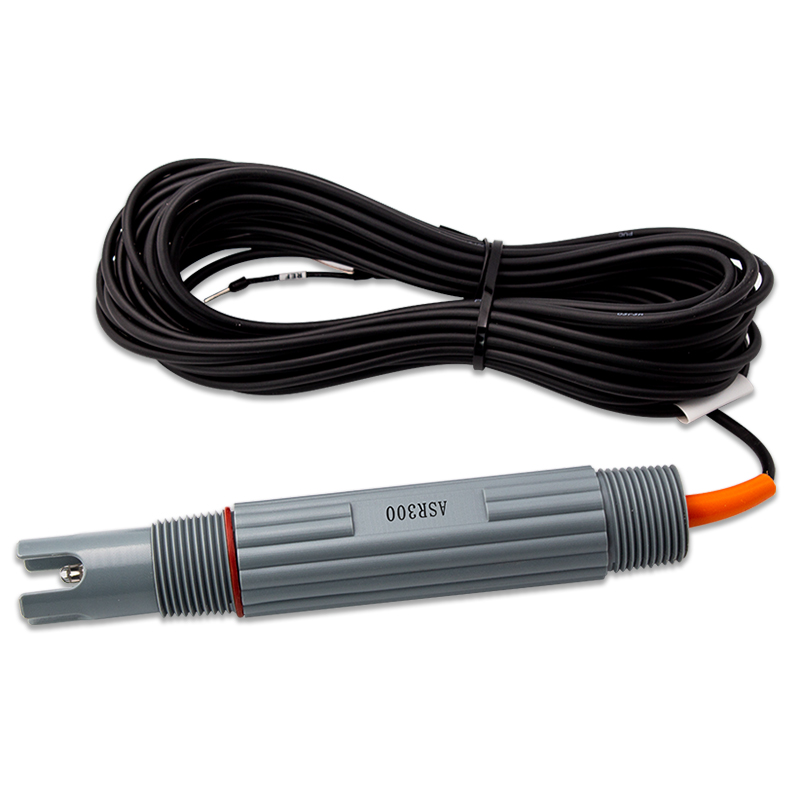

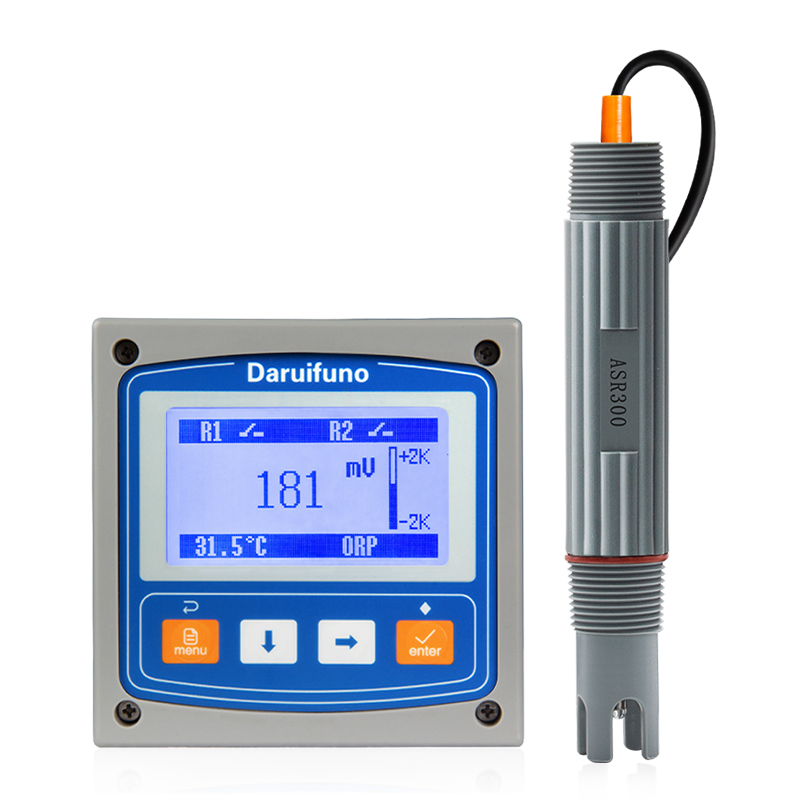

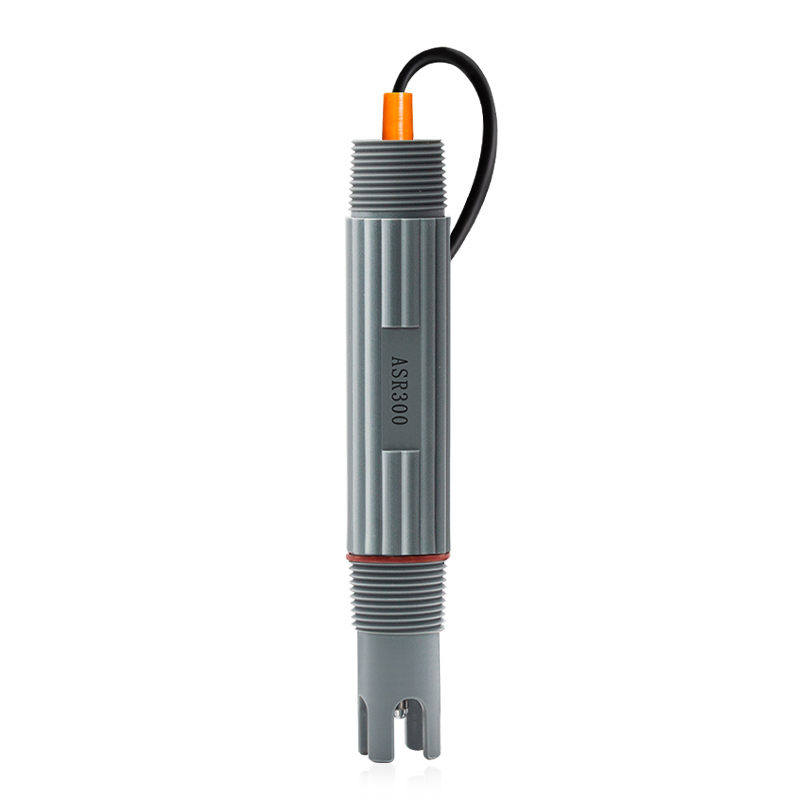

ORP Sensor ASR300

Encapsulated in a robust ABS shell with a platinum flat indicator electrode, this durable instrument supports integrated automatic cleaning systems to deliver highly stable oxidation-reduction potential measurements across domestic sewage and industrial wastewater applications.

  • Measuring Range： ±1500mV
  • Delivery time： 2-5 weeks
  • MOQ： 1
  • Price： Contact Us
Option
  • Anti-twist cap
  • PG13.5
Get A Quote
  • Fast And Safe Logistics
  • Reliable Quality, Guaranteed Performance.
  • Overview
  • Specification
  • Downloads
  • Accessories
  • Related Productions
Show All Products: Show All pH / ORP Sensor & Controller

Standard

Sensor Model ASR300
Digital or Analog Analog
Measuring Principle Potentiometric
Measuring Parameter ORP
Measuring Range ±1500mV
Indicator Electrode platinum flat
Reference System Ag/AgCl reference electrode, double salt bridge, KCl gel
Reference Electrolyte KCl Gel
Sensor Material PTFE+platinum
Operating Temperature 0~60℃@4Bar, 60~80℃@2Bar
Operating Pressure 0~60℃@4Bar, 60~80℃@2Bar
Temperature Sensor @customized PT1000, PT100, NTC10K, etc.
Recommended Solution Flow 0.5 m/s ≥ velocity ≥ 0.001 m/s
E0 ±20mV (25℃)
Slope >95% (25℃)
Sensor Dimension Diameter: 35mm, Shaft length: 200mm
Process Connection 1''NPT threads at both ends, insertion depth 100mm
Cable Connector Integrated type
Cable Length Standard 5m, other lengths can be customized
Model Family ASr300
