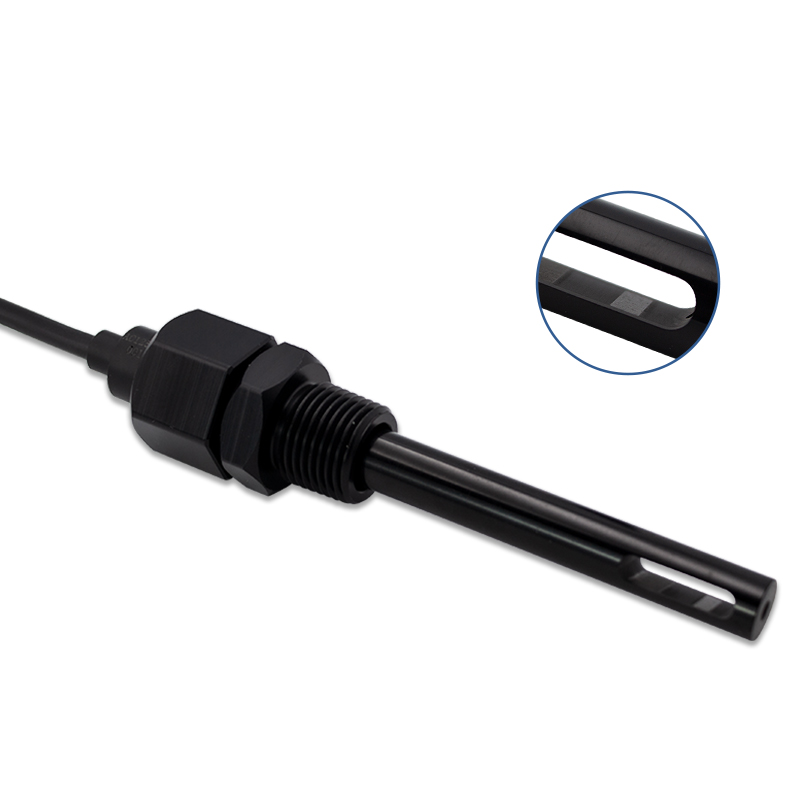

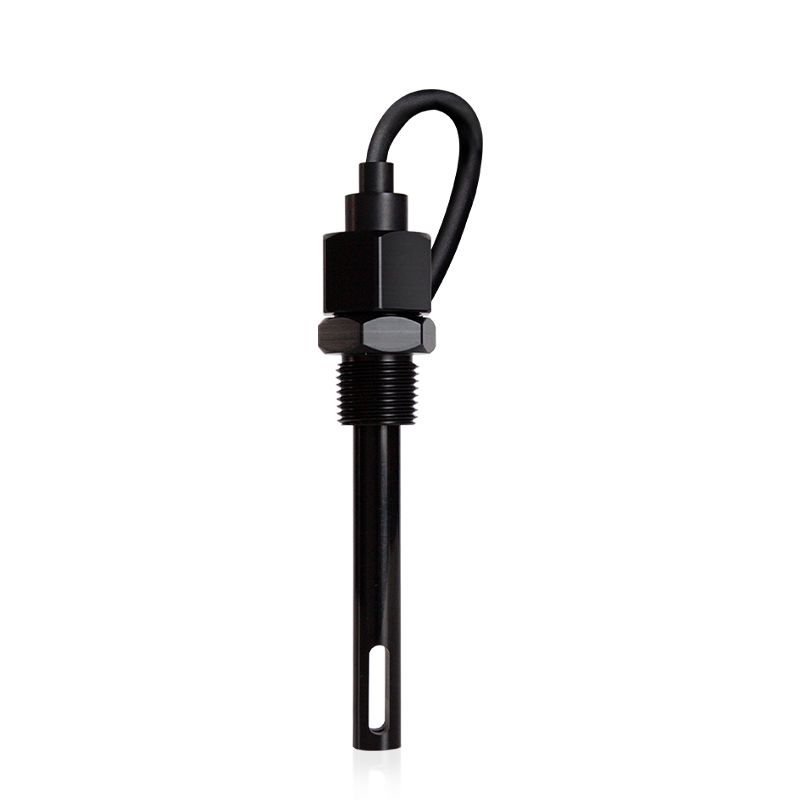

This industrial-grade instrument employs a two-electrode measuring principle with graphite-POM construction to provide a reliable, low-maintenance solution for lower conductivity ranges up to 10 mS/cm.
| Model | ASC100-T |
| Measuring Principle | Through-hole 2-electrode |
| K Constant | 1 cm⁻¹ (±10%) |
| Measuring Range | 0~10mS/cm |
| Temp & Pressure | 0~60℃@4Bar, 60~80℃@2Bar |
| Sample Flow Rate | No dependent |
| Temperature Unit | PT1000@customized |
| Mounting Thread | 1/2’’ NPT |
| Lead Type | Integrated |

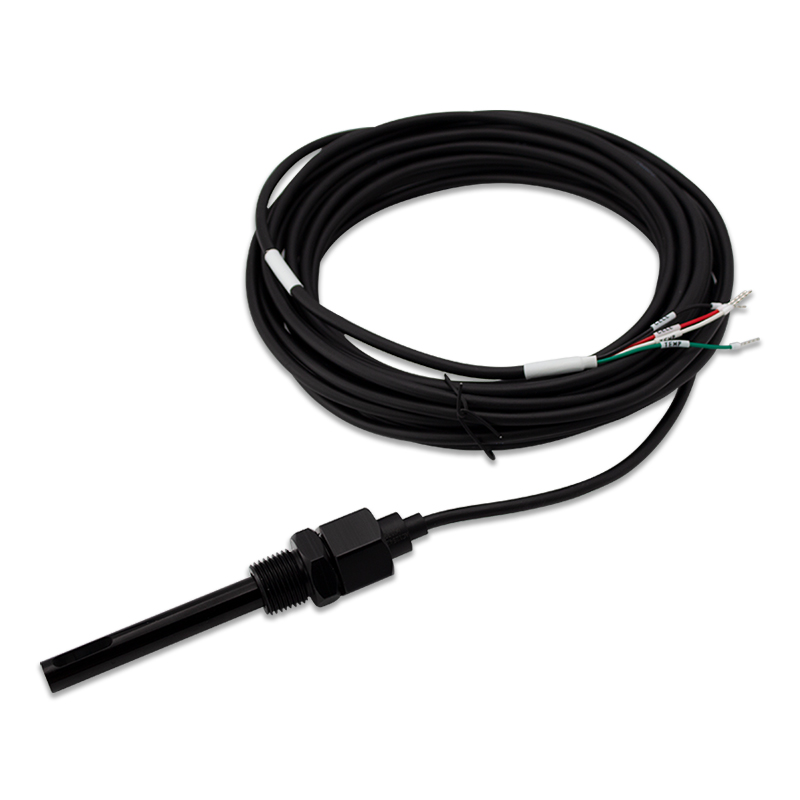

| Cable Length | Standard 5m; other lengths can be customized |
| Sensor Dimension | Φ13 x L120mm |
| Sensor Material | Graphite+POM |
