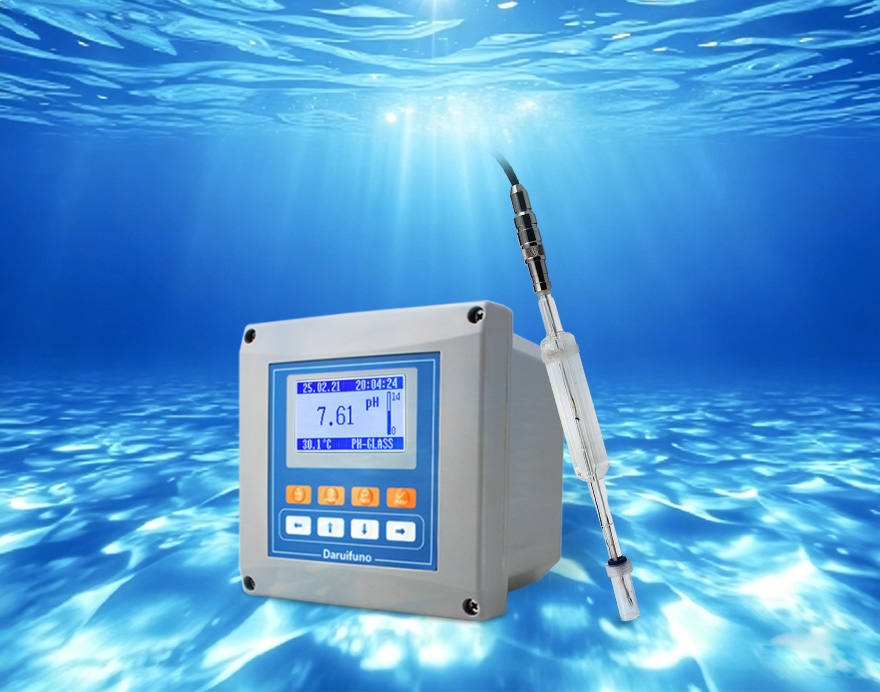

pH Sensor ASP220EHF

Optimized for high-temperature industrial chemical processes in strong acids and alkalis, this refillable, high-strength cylindrical glass probe utilizes a porous ceramic sand core to deliver a highly stable liquid interface.

  • Measuring Range: 0~14 pH
  • Delivery time: 2-5 weeks
  • MOQ: 1
  • Price: Contact Us
Option
  • Anti-twist cap
  • PG13.5
Get A Quote
  • Fast And Safe Logistics
  • Reliable Quality, Guaranteed Performance.

Standard

Sensor Model ASP220EHF
Digital or Analog Analog
Measuring Principle Potentiometric
Measuring Parameter pH
Measuring Range pH 0~14
Indicator Electrode Cylindrical glass membrane
Reference System Ag/AgCl reference electrode, Double salt bridge
Electrode Material Glass+porous ceramic sand core
Temp.&Pressure 0~135℃@6Bar
Sample Flow Rate 0.5 m/s ≥ velocity ≥ 0.001 m/s
Zero Position(E0) ±0.25pH (25℃)
Slope% >95% (25℃)
Temperature Unit @customized PT1000, PT100, NTC10K, etc.
Sensor Dimension Diameter: 12mm, Shaft length: 120mm
Mounting Thread PG13.5
Lead Type Integrated or split FS8, K8S, FVP, etc. (@optional)
Cable Length 5m as standard (Customizable length available)
Application Strong acid and alkali
Model Family ASP400
